Nom. Size Range
DN 15 - DN 200
Nom. Pressure Range
PN 10 - PN 40
Temperature Range
-10 °C up to +300 °C
Sealing
Flat Seal
key facts
-

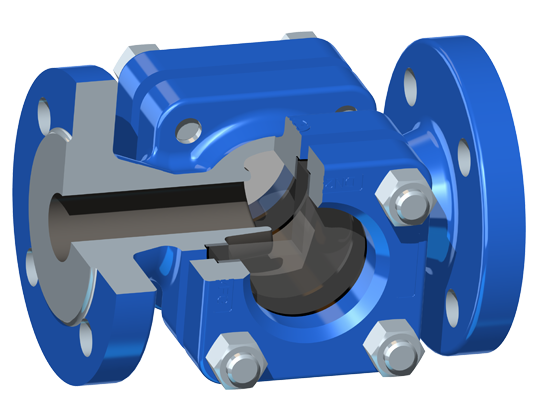

Straight Pattern
-
Jammed Glass Plates (Borosilicate)

DESIGN
- Straight Pattern, with Cast-in Swirler
- With round flow Indicator Plate
- Jammed Glass Plates (Borosilicate)
- Flanged
OPTIONS
- Twin-glasses
- Metal fused glasses
ADDITIONAL EQUIPMENT
- Heating Jacket
CUSTOM MATERIALS
- 1.4408
- 1.0619
- Further Materials upon Request
Nom. Size Range
DN 25 - DN 100
Nom. Pressure Range
PN 10
Temperature Range
-10 °C up to +200 °C
Sealing
Flat Seal
key facts
-

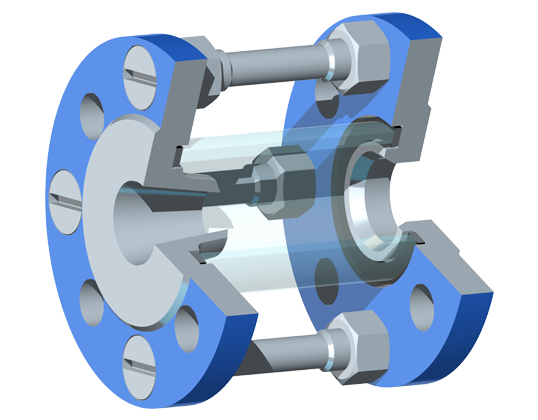

Straight Pattern
-
Jammed Flow Indicator (Borosilicate)

DESIGN
- Straight Pattern, with Cast-in Swirler
- Jammed Flow Indicator (Borosilicate)
- Bolts suitable for transfer of pipe forces
- Flanged
OPTIONS
- Without Vortex Generator (Entry Nozzle)
- Passage = Glass Tube Inner Diameter (Free of Dead Space)
- Splinter Protection
CUSTOM MATERIALS
- 1.4571
- 1.4541
- Further Materials upon Request
Nom. Size Range
DN 15 - DN 300
Nom. Pressure Range
PN 10 - PN 40
Temperature Range
-200 °C up to +550 °C
Sealing
Flat Seal
key facts
-

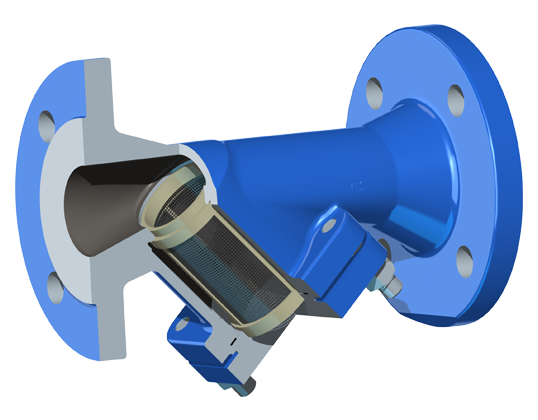

Slanted Seat
-
Pass-through form
-
Interchangable Screen

DESIGN
- Bolted Cover
- Pass-through form
- Interchangable Screen
- Flanged
- Mesh sizes:
- up to DN 50 = 0,5 mm
- DN 65 - 150 = 1,0 mm
- DN 200 = 1,6 mm
OPTIONS
- Drain Plug
- Double Screen
- Special Mesh sizes
ADDITIONAL EQUIPMENT
- Heating Jacket
CUSTOM MATERIALS
- 1.4308
- 1.4552
- 1.4408
- 1.4581
- 1.0619
- 1.5419
- 1.7357
- 1.7363
- Further Materials upon Request
