Flow Rate
up to 3.500 m³/h
Delivery Head
up to 220 m L.C.
Temperature Range
-120 °C up to +450 °C
Pressure Rating
PN 40 @ 120 °C
key facts
-
Design according to API 610 12th Edition
-

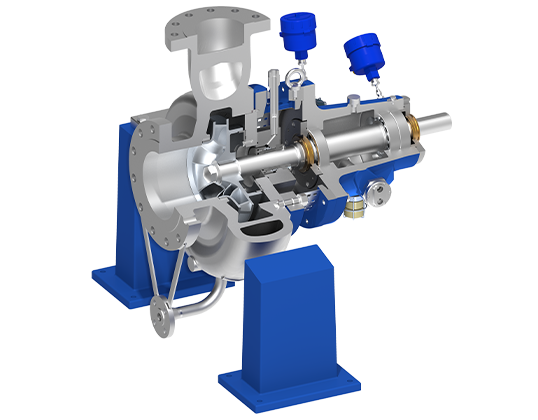

Heavy duty process design with centerline support (OH2)
-
Back pull-out design for easy maintenance
-

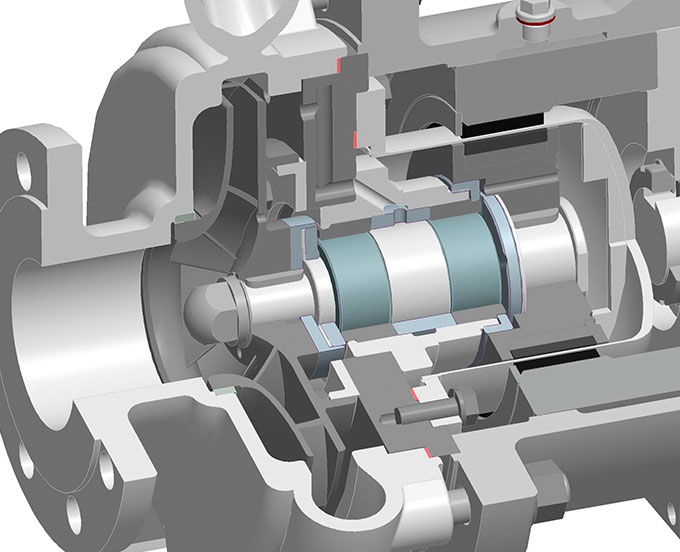

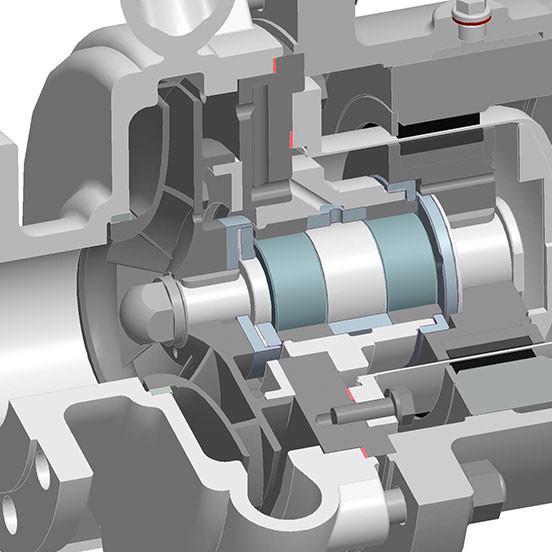

Seal Chamber in full compliance with API 610 and API 682
DESIGN
- Single stage process centrifugal pump
- Heavy duty process design with centerline support (OH2)
- Back pull-out design for easy maintenance
- Seal Chamber in full compliance with API 610 and API 682

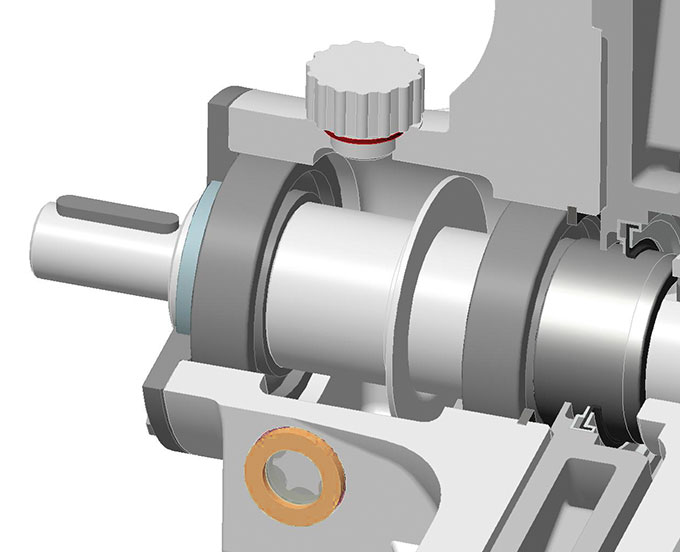

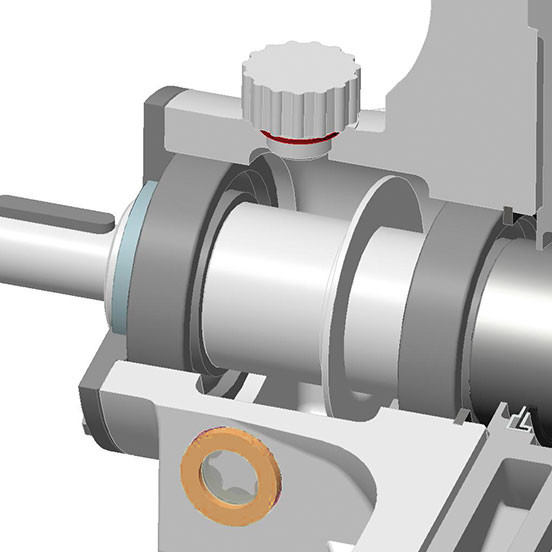

- Antifriction oil lubricated bearings in a carbon steel housing
- Various options available
PERFORMANCE RANGE
| Flow Rate | Q | 3.500 m³/h |
| Delivery Head | H | up to 220 m L.C. |
| Temperature Range | t | -120 °C up to +450 °C |
| Pressure Rating | p | PN 40 @ 120 °C |
Higher pressure ratings upon request
TYPICAL APPLICATIONS
- Hydrocarbons
- Coolants
- Sewage
- Salt Solutions
- Molton Sulfur
- Lyes
- Heat Transfer Liquids
- Liquid Gases
- Dyes
- Pulp
- Acids
MATERIALS
| Component | S-8 | A-8 | D-1 |
| Pump Casing | Carbon Steel | 316 Austenite | Duplex |
| Impeller | 316 Austenite | 316 Austenite | Duplex |
| Wetted Parts | 316 Austenite | 316 Austenite | Duplex |
| Shaft | 316 Austenite | 316 Austenite | Duplex |
| Intermediate Lantern / Bearing Support | Carbon Steel | Carbon Steel | Carbon Steel |
Other materials upon request
