Flow Rate
max. 3.500 m³/h
Delivery Head
max. 220 m L.C.
Temperature Range
-40 °C to +300 °C
Pressure Rating
max. PN 63
key facts
-
Design according to DIN EN ISO 2858 / 5199
-
Submerging Depth up to 10.000 mm
-
Design based on API 610 available on Request
DESIGN

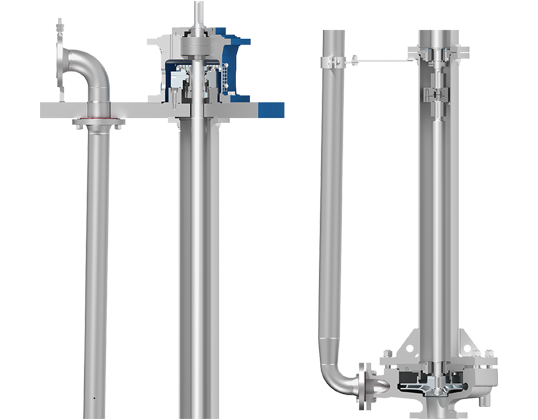

- Vertically Mounted, One-Stage Centrifugal Pump
- Available with either an enclosed or unenclosed Impeller and a Liner Wall
- Impeller integrates a Hydraulic Assist Mechanism
- Shaft Wet-Mounted in radial SiC Bearings in the Support Tube
- Roller Bearing packed in grease in the Bearing Lantern
- Separate Pressure Line extends to above the Support Flange
- Shaft Sealed via a Face Seal and Gland Packing
- Design based on API 610 available on Request
OPERATING RANGE
| Flow Rate | Q | 3.500 m³/h |
| Delivery Head | H | max. 220 m L.C. |
| Temperature Range | t | -40 °C to +300 °C |
| Pressure Rating | p | max. PN 63 |
Special constructions and higher outputs available.
TYPICAL APPLICATION
- Acids
- Lyes
- Hydrocarbons
- Heat Transfer Liquids
- Liquid Gases
CUSTOM MATERIALS
| Pump casing: | 1.4408 or 1.0619 |
| Impeller: | 1.4408 |
| Shaft: | 1.4571 |
| Shaft sheath: | 1.4571 |
| Internal Bearing: | Silicon Carbide |
| Bearing Carrier: | 1.0038 |
| Shaft Seal: | Acc. to product and/or customer specifications |
Further materials upon request.
