Flow Rate
max. 3.500 m³/h
Delivery Head
max. 220 m L.C.
Temperature Range
-120 °C to +450 °C
Pressure Rating
max. PN 400
KEY FACTS
-

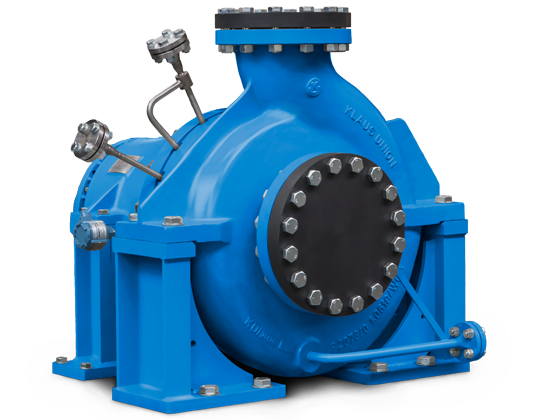

Design according to API 685 2nd Edition
-
Maintenance-Free Permanent Magnet Drive
-
Modular Design
-
No Dynamic Seal, Separation of Liquid Chamber and Atmosphere by Means of Containment Shell

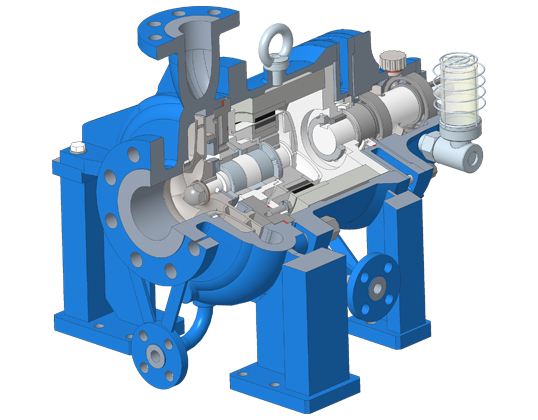

DESIGN
- Single-Stage Centrifugal Pump in Process Oriented Design
- Synchronous Permanent Magnet Drive
- Easy to Maintain
- Seperation of Liquid Chamber and Atmosphere by Means of Isolation Shell
- Bearing Bracket with Oil-Lubricated Anti-Friction Bearings; Optional: Close-Coupled Design
- Product-Lubricated Journal Bearings; Made of Silicon Carbide (SSiC); Customized Materials (e.g. Carbon, WOC etc.) on demand
OPERATING RANGE
Flow Rate | Q | 3.500 m³/h |
Delivery Head | H | max. 220 m L.C. |
Temperature Range | t | -120 °C to +450 °C |
Pressure Rating | p | max. PN 400 |
Special constructions and higher outputs are available
TYPICAL APPLICATION
- Hydrocarbons
- Liquid Gases
- Aggressive, Explosive, Toxic and Malodorous Liquids
- Valuable Liquids
- Heat Transfer Liquids
- Coolants
- Acids
- Lyes
CUSTOM MATERIALS
Component | A-8 | S-8 |
Pump casing | 316 austenite | Cast steel |
Impeller | 316 austenite | 316 austenite |
Containment shell | Hastelloy C | Hastelloy C |
Pump shaft | 316 austenite | 316 austenite / C-steel |
Intermediate lantern / Bearing carrier | Cast steel | Cast steel |
Drive shaft | C-steel | C-steel |
Further materials such as the following are available: H-2 (Hastelloy C), A-9 (Alloy-20), T-1 (Titanium), D-1 (Duplex).
Flow Rate
max. 3.500 m³/h
Delivery Head
max. 220 m
Temperature Range
-120 °C to +350 °C
Pressure Rating
max. PN 400
key facts

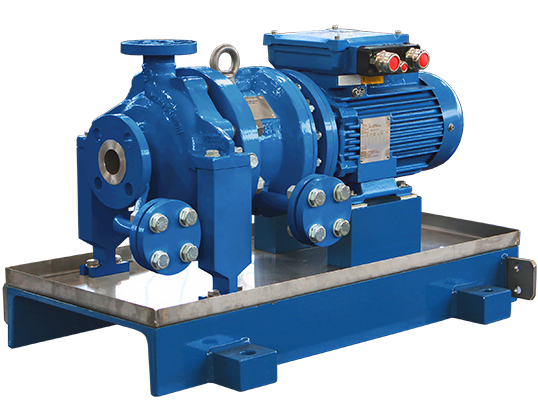

- No Alignment between Pump and Motor
- No Coupling and Coupling Guard
- No Ball Bearings
- Pump does not require scheduled Maintenance
- No Oil Lubrication necessary
- Lower noise level
- High Stiffness of the Pump Shaft because of small overhung compared to Pumps with Shaft Seals
- Use of standard high efficient IEC and NEMA Motors contrary to canned Motors
- Better availability with standard Motors
- Maintenance of Motors is standardized and can be done by the customer on site
- Base Plates for Close-Coupled Design do not need to be rigid acc. to API 685 – 7.3
DESIGN
- Process oriented design
- Magnet drive
- Leakproof
- Horizontally mounted
- Modular Design
- Center mounting bracket
- Oiled ball bearing
- Bearing Bracket with Oil-Lubricated or Greased-for-Life Anti-Friction Bearings
OPERATING RANGE
Flow Rate | Q= | 3.500 m³/h |
Delivery Head | H= | max. 220 m |
Temperature Range | t= | -120 °C to +350 °C |
Pressure Rating | p= | max. PN 400 |
Special constructions and higher outputs are available
TYPICAL APPLICATION
- Hydrocarbons
- Liquid Petroleum Gases
- Aggressive, Explosive and Toxic Liquids (LPG)
- Heat Transfer Liquids
- Coolants
- Acids
- Lyes
CUSTOM MATERIALS
Component | A-8 | S-8 |
Pump casing | 316 austenite | Cast steel |
Impeller | 316 austenite | 316 austenite |
Containment Shell | Hastelloy C | Hastelloy C |
Pump shaft | 316 austenite | 316 austenite / C-steel |
Bearing lantern/bearing carrier | Cast steel | Cast steel |
Drive shaft | C-steel | C-steel |
Further materials such as the following are available: H-2 (Hastelloy C), A-9 (alloy-20), T-1 (titanium), D-1 (duplex).
NACHSETZZEICHEN (AUSFÜHRUNGEN):
H1 | beheiztes Pumpengehäuse |
H2 | beheizte Zwischenlaterne |
F | Innenfilter |
E1 | externe Einspeisung, interne Teilstrombohrungen verschlossen |
E2 | externe Spülung / Entlüftung, interne Teilstrombohrungen offen |
E1F | externer Teilstrom mit Hauptstromfilter nach DGRL |
D | Doppelschaliger Spalttopf |
J | Inducer |
DESIGN VARIANTS
The pumps are outfitted with a heat jacket and pump casing (H1) and/or a heat jacket in the bearing lantern (H2). Both heat jackets can be realized either separately or in conjunction with a bypass line. The heat jackets in the standard construction are rated for operating pressure of 16 bar at 200 °C (steam) or 6 bar at 350 °C. The heat jackets can also be used for cooling.
When solids-containing liquids are being transported, the internal filter prevents inadmissibly large particles from entering the flow channels, and from there the magnetic coupling and internal bearings.
These external connections allow for external flushing, feeding and/or venting. Connection E1 is used in situations where a continuous feed into the magnet drive is desired. Connection E2 is used suitable for short-term flushing, or for external venting of the magnetic coupling.
The double isolation shell should be used in situations requiring a high level of safety. The unit consists of two interlocking isolation shells, both of which are rated for the relevant operating conditions. If one of the two units is damaged, the casing still remains leaktight. The gap between the two units can be monitored.
Inducers are often used in cases where the installation’s NPSH values are extremely low. Inducers substantially reduce pump NPSH throughout the installation without altering pump characteristics. Inducer J can be retrofitted on existing pumps, in most cases with only a minimum amount of pump modification.
