Nom. Size Range
DN 15 - DN 300
Pressure Rating
PN 10 - PN 160
Temperature Range
-200 °C - +550 °C
Sealing
Gland Packing
key facts
-
Bolted Bonnet
-
Outside Screw
-
Gland Packing
-
Rising Handwheel
![](https://www.klaus-union.com/wp-content/uploads/Armaturen_Globe-Valve_DIN.png)

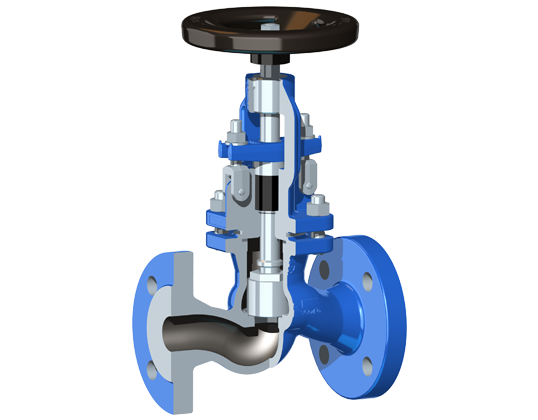

DESIGN

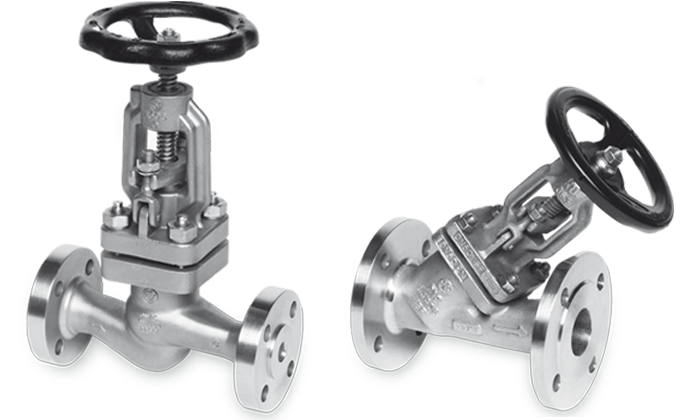

- T-Pattern
- Bolted Bonnet
- Outside Screw
- Gland Packing
- Rising Handwheel
- Integral Seat
- Flanged
OPTIONS
- Position Indicator
- Pressure Balancing Disc
- Live Loaded Packing System
- Extended Bonnet
- Soft Sealed Disc
- Conical Disc
- Throttle Disc
ADDITIONAL EQUIPMENT
- Electric Actuator
- Limit Switching
- Chain Wheel
- Pneumatic Actuator
- Extended Stem
- Gearbox
STANDARD MATERIALS
- 1.4308
- 1.4552
- 1.4408
- 1.4581
- 1.0619
- 1.5419
- 1.7357
- 1.7363
- Other materials on request
Nom. Size Range
DN 15 - DN 200
Pressure Rating
PN 10 - PN 160
Temperature Range
-200 °C - +550 °C
Sealing
Gland Packing
key facts
-
Bolted Bonnet
-
Outside Screw
-
Gland Packing
-
Rising Handwheel
![](https://www.klaus-union.com/wp-content/uploads/Pumpen_SLM_NV_c.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_aktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_inaktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_aktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_inaktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_aktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_inaktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_aktiv.png)
![](https://www.klaus-union.com/wp-content/uploads/hotspot_inaktiv.png)
DESIGN
- Y-Pattern
- Bolted Bonnet
- Outside Screw
- Gland Packing
- Rising Handwheel
- Integral Seat
- Flanged
OPTIONS
- Position Indicator
- Pressure Balancing Disc
- Live Loaded Packing System
- Extended Bonnet
- Soft Sealed Disc
- Conical Disc
- Throttle Disc
ADDITIONAL EQUIPMENT
- Electric Actuator
- Limit Switching
- Chain Wheel
- Extended Stem
- Pneumatic Actuator
- Gearbox
STANDARD MATERIALS
- 1.4308
- 1.4552
- 1.4408
- 1.4581
- 1.0619
- 1.5419
- 1.7357
- 1.7363
- Other materials on request
