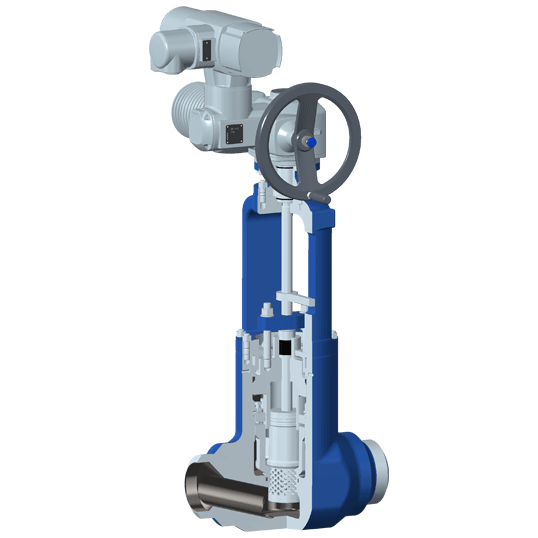

ControlValves

Pressure Seal Type

Nom. Size Range

DN 80 - DN 600 / 3“- 24“

Pressure Range

up to 600 bar

Temperature Range

up to +650 °C /
+1,202 °F

Sealing

Parabolic Disc / Perforated Disc

key facts

  • Forged Steel
  • Pressure Seal Bonnet
  • Outside Screw & Yoke
  • Rising Spindle

DESIGN

  • Forged Steel
  • Pressure Seal Bonnet
  • Outside Screw & Yoke
  • Rising Spindle
  • Parabolic Disc / Perforated Disc
  • Standard Yoke prepared for mounting of electric actuator ISO 5210
  • Mechanical Position Indicator

OPTIONS

  • Flanged Ends
  • Pup Pieces
  • Pneumatic Actuator
  • Electric Actuator
  • Hydraulic Actuator
  • Limit Switches / Positioner
  • Locking Device
  • Live Loaded Packing System

STANDARD MATERIALS

Materials EN Materials ASTM
1.0640 P250GH A105
1.5415 16Mo3
1.7335 13CrMo4-5 A182 F11 / F12
1.7380 10CrMo9-10 A182 F22
1.4903 X10CrMoVNb9-1 A182 F91
