SLM NV

Centrifugal Pump based on DIN EN ISO 2858 / 15783

  • Fields of Application: Chemistry / Petrochemistry / Refrigeration and Heat Treatment / Oil & Gas / Power
  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -120 °C to +450 °C (Hochtemp.-Pumpe SLM NHO)
  • Pressure Rating: max. PN 400

SLM AP

Centrifugal Pump acc. API 685

  • Fields of Application: Chemistry / Petrochemistry / Refrigeration and Heat Treatment / Oil & Gas / Power / On- & Offshore Plants
  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -120 °C to +450 °C
  • Pressure Rating: max. PN 400

SLM AV

Centrifugal Pump acc. to ASME 73.3

  • Fields of Application: Chemistry / Petrochemistry / Power / Oil & Gas / Refrigeration and Heat Treatment
  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -120 °C to +450 °C
  • Pressure Rating: max. PN 400

SLM NHO

Centrifugal Pump for High Temperature Applications (450 °C)

  • Design according DIN EN ISO 2858 / 15783
  • Fields of Application: Chemistry / Energy / Heat Treatment
  • Flow Rate: max. 1.200 m3/h
  • Delivery Head: max. 200 m L.C.
  • Temperature Range: -120 °C to +450 °C
  • Pressure Rating: max. PN 40

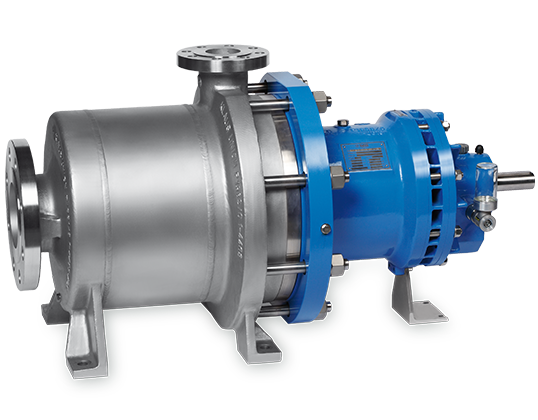

SLM GV

Multi-Stage Centrifugal Pump based on DIN EN ISO 15783 / API 685

  • Fields of Application: Chemistry / Petrochemistry / Refrigeration and Heat Treatment / Oil & Gas / Power
  • Flow Rate: max. 350 m3/h
  • Delivery Head: max. 700 m L.C.
  • Temperature Range: -120 °C to +350 °C
  • Pressure Rating: max. PN 200

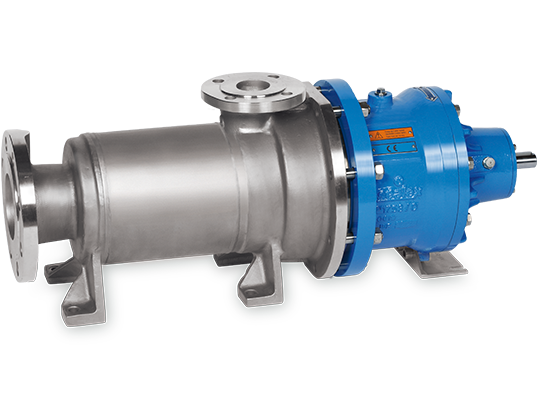

SLM SV

Multi-Stage Side Channel Pump based on DIN EN ISO 15783

  • Fields of Application: Chemistry / Petrochemistry / Refrigeration / Oil & Gas / Vacuum Technology
  • Flow Rate: max. 42 m3/h
  • Delivery Head: max. 470 m L.C.
  • Temperature Range: -50°C to +200 °C
  • Pressure Rating: max. PN 40

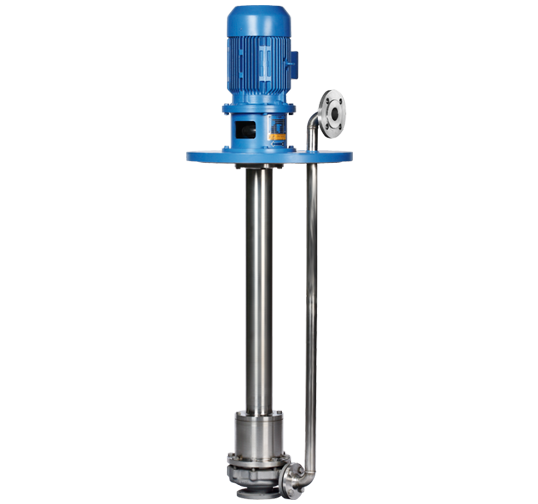

SLM NVT

Submerged Pump based on DIN EN ISO 2858 / 15783

  • Fields of Application: Chemistry / Petrochemistry / Power
  • Flow Rate: max. 900 m3/h
  • Delivery Head: max. 200 m L.C.
  • Temperature Range: -50 °C to +200 °C
  • Pressure Rating: max. PN 40
  • Tauchtiefen bis 10 Meter

Energy Efficient Design

Enhancing pump efficiency through the use of non-metallic containment shells

  • Nom. Pressure Rating: PN 40 (PN 50 / PN 63 available on request)
  • Temperature Range: -200 °C to +400 °C
  • Transmittable Power: up to 1 MW
