SLM NV

Centrifugal Pump with Magnet Drive based on DIN EN ISO 2858 / 15783

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -200 °C to +550 °C
  • Pressure Rating: max. PN 400

SLM AP

Centrifugal Pump with Magnet Drive acc. API 685

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -200 °C to +550 °C
  • Pressure Rating: max. PN 400

SLM AV

Centrifugal Pump with Magnet Drive acc. to ASME 73.3

  • Flow Rate: max. 200 m3/h
  • Delivery Head: max. 155 m L.C.
  • Temperature Range: -200 °C to +550 °C
  • Pressure Rating: max. PN 400

SLM NHO

Centrifugal Pump with Magnet Drive for High Temperature Applications (450 °C)

  • Design according DIN EN ISO 2858 / DIN EN ISO 15783
  • Flow Rate: max. 1.200 m3/h
  • Delivery Head: max. 215 m L.C.
  • Temperature Range: -120 °C to +550 °C
  • Pressure Rating: max. PN 40



SLM GV

Multi-Stage Centrifugal Pump with Magnet Drive based on DIN EN ISO 15783 / API 685

  • Flow Rate: max. 300 m3/h
  • Delivery Head: max. 2.200 m L.C.
  • Temperature Range: -120 °C to +350 °C
  • Pressure Rating: max. PN 250



SLM SV

Multi-Stage Side Channel Pump with Magnet Drive based on DIN EN ISO 15783

  • Flow Rate: max. 42 m3/h
  • Delivery Head: max. 470 m L.C.
  • Temperature Range: -120°C to +250 °C
  • Pressure Rating: max. PN 400

SLM NVT

Submerged Pump with Magnet Drive based on DIN EN ISO 2858 / DIN EN ISO 15783

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -40 °C to +200 °C
  • Pressure Rating: max. PN 63
  • Submerging Depth: max. 6.000 mm

VERTICAL INLINE

Vertical Inline Pump in closed-coupled design following DIN EN ISO 22858 & 15783 / ASME B73.3M / API 685

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -120 °C to +350 °C
  • Pressure Rating: max. PN 40 at 120 °C



Energy Efficient Design

Enhancing pump efficiency through non-metallic containment shells

  • Pressure Range: max. PN 63
  • Temperature Range: -200 °C to +550 °C
  • Max. up to 1 MW

SLM NK

PTFE/PFA-lined Centrifugal Pump with magnetic drive according to DIN EN ISO 22858

  • Flow Rate: max. 200 m3/h
  • Delivery Head: up to 90 m L.C.
  • Temperature Range: up to +170 °C
  • Pressure Rating: up to PN 16





Plastic lined peripheral pump

SLM TK

PTFE/PFA-lined Peripheral pump with magnetic drive

  • Flow Rate: up to 10 m3/h
  • Delivery Head: up to 90 m L.C.
  • Temperature Range: up to +150 °C
  • Pressure Rating: up to PN 16

NOV

Centrifugal Pump with Mechanical Seal acc. to DIN EN ISO 2858 / 5199

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -120 °C to +550 °C
  • Pressure Rating: max. PN 400



APL

Single-Stage Centrifugal Pump with Mechanical Seal acc. to API 610

  • Flow Rate: up to 3.500 m3/h
  • Delivery Head: up to 220 m L.C.
  • Temperature Range: -120 °C to +550 °C
  • Pressure Rating: max. PN 40 @ 120 °C

GOV

Multi-Stage Centrifugal Pump with Mechanical Seal acc. to DIN EN ISO 5199

Flow Rate: max. 300 m3/h

  • Delivery Head: max. 2.200 m L.C.
  • Temperature Range: -120 °C to +350 °C
  • Pressure Rating: max. PN 250

TP NO

Submerged Centrifugal Pump with Mechanical Seal acc. to DIN EN ISO 2858 / DIN EN ISO 5199

  • Flow Rate: max. 3.500 m3/h
  • Delivery Head: max. 220 m L.C.
  • Temperature Range: -40 °C to +300 °C
  • Pressure Rating: max. PN 63

P

Horizontally Mounted Propeller Pump with Mechanical Seal

  • Flow Rate: max. 12.000 m3/h
  • Delivery Head: max. 12 m L.C
  • Temperature Range: -120 °C to +250 °C
  • Pressure Rating: max. PN 100

UP

Vertically Mounted Propeller Pump with Mechanical Seal for Integration into a Tank

  • Flow Rate: max. 21.500 m3/h
  • Delivery Head: max. 8,5 m L.C
  • Temperature Range: -50 °C bis +400 °C
  • Pressure Rating: max. PN 10

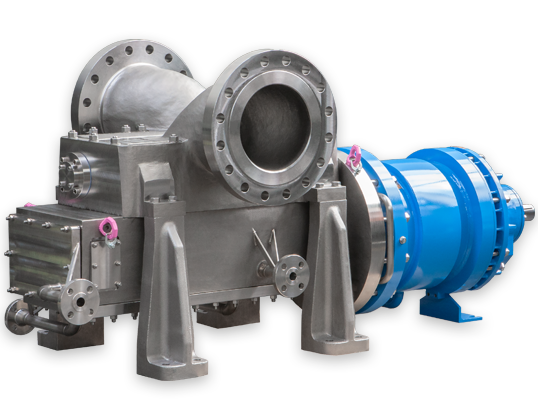

SLM DSP-2C

Single Volute Twin Screw Pump with Magnet Drive acc. to API 676

  • Flow Rate: max. 1.800 m3/h
  • Differential Pressure: max. 40 bar
  • Temperature Range: -120 °C to +400 °C
  • Pressure Rating: max. PN 400
  • Viscosity: max. 100.000 mm²/s (cSt)





DSP-2C

Single Volute Twin Screw Pump with Mechanical Seal acc. to API 676

  • ‘Plug & Pump’ – Cartridge Design
  • Flow Rate: max. 1.800 m3/h
  • Differential Pressure: max. 40 bar
  • Temperature Range: -120 °C to +400 °C
  • Pressure Rating: PN 400
  • Viscosity: max. 100.000 mm²/s (cSt)



DSP-4CL

Double Volute Twin Screw Pump with Mechanical Seal acc. to API 676

  • ‘Plug & Pump’ – Cartridge Design
  • Flow Rate: max. 5.000 m3/h
  • Differential Pressure: max. 100 bar
  • Temperature Range: -120 °C to +350 °C
  • Viscosity: max. 100.000 mm²/s (cSt)
